Why Daikin ADEA50A2VEB for a Benalmadena villa?

The ADEA50A2VEB is a Daikin ceiling-concealed ducted fan-coil unit with A2L (R32) classification, manufactured at Daikin's Czech Republic plant. For a villa where internal finishes matter, the ceiling-concealed ducted solution is the cleanest option: no visible wall splits, no interruption to the tiling or plastered finishes, and the only element visible in the finished room is the grille. Daikin is also one of the brands with the strongest technical support network and spare parts availability on the Costa del Sol.

What is the difference between ducted AC with Airzone and without zoning?

Without zoning, all rooms receive conditioned air simultaneously at the same level — the compressor runs at full load even if only one room is occupied. With Airzone, each room has its own motorised damper and thermostat: when only the master bedroom needs cooling, dampers in the other zones close and the Daikin compressor reduces to the minimum load needed. The result is real electricity savings and better comfort, because each room holds its own setpoint rather than being over-cooled along with the rest.

How long does an installation like this take?

Timescale depends on the number of indoor units and the complexity of routing the refrigerant line sets through the property. On this Benalmadena project the owner needed the system running quickly — urgency was one of the reasons they contacted Agua Therm. By having all Daikin equipment and the Airzone kit on site from day one, ceiling access, indoor unit installation, line set runs and commissioning were all completed within a tight window.

Is R32 refrigerant safe in a residential ceiling-concealed installation?

Yes. R32 is classified A2L by ASHRAE 34: low toxicity and lower flammability. The A2L classification means the refrigerant can only ignite under very specific concentrations and ignition conditions that do not arise in correctly designed residential installations. The European F-Gas Regulation (EU 2024/573) promotes R32 as the standard refrigerant for residential AC in Europe precisely because of its lower environmental impact (GWP 675 versus 2,088 for the R410A it replaces). Daikin ADEA50A2VEB units are factory-rated A2L and designed to meet the required safety clearances.

What maintenance does a ducted system need on the Costa del Sol?

Ducted AC systems on the Costa del Sol should have indoor unit filters cleaned at the start and end of the cooling season (typically May and October), condensate drain checked before summer, and refrigerant charge verified every two to three years. Annual checks of compressor operation and electrical connections are recommended to maintain manufacturer warranty. Agua Therm offers maintenance contracts for all systems we install.

Does Agua Therm handle IDAE grants or IRPF tax deductions?

No. Agua Therm handles only installation-related permits (obra menor where required, electrical connection). IDAE grants, IRPF deductions and IBI discounts are separate administrative processes that must be handled by specialist grant-management companies. We can point you in the right direction but we are installers, not subsidy administrators.

Equipment installed on this project

Benalmadena • June 2026

Ducted Air Conditioning Benalmadena — Daikin + Airzone in Existing Villa

Real Case Study: Daikin ADEA50A2VEB Ceiling-Concealed Ducted AC with Airzone Zoning, Benalmadena Villa — ARXM35A5V1B9 R32 Outdoor Units, Testo Digital Commissioning

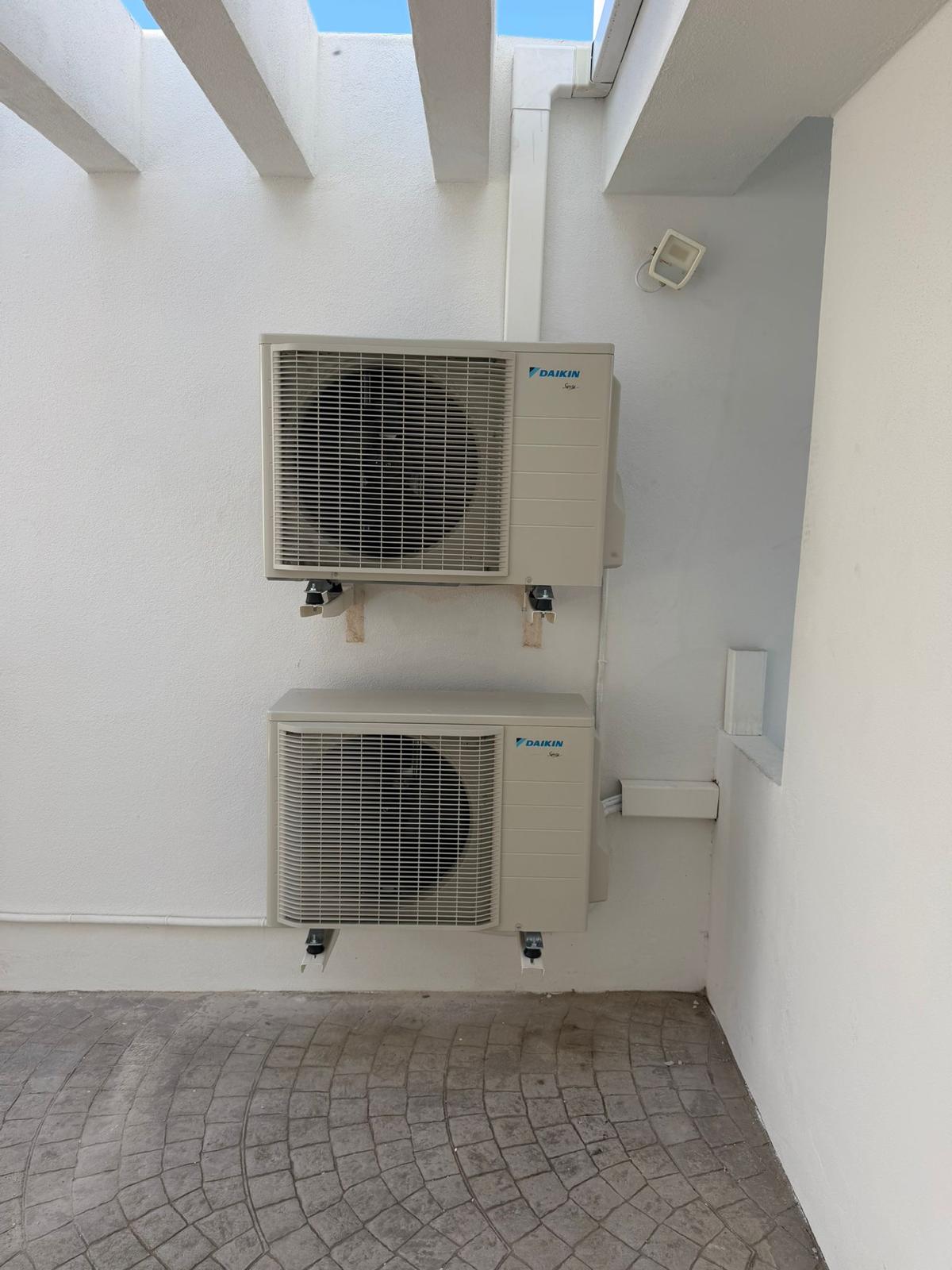

Completed installation: both Daikin ARXM35A5V1B9 outdoor units wall-mounted on villa side elevation, line sets in white trunking, cobblestone patio floor

Project Overview

Location

Benalmadena, Costa del Sol

Property type

Existing private villa

System installed

Daikin ADEA50A2VEB ceiling-concealed indoor units + 2× Daikin ARXM35A5V1B9 outdoor units (R32, A2L) + Airzone zoning

Refrigerant

R32 — A2L (GWP 675, lower flammability class)

Date

June 2026

Commissioning

Testo digital manifold — professional F-Gas commissioning

The Challenge: Existing Benalmadena Villa — Fast Turnaround, Clean Installation

The owner of this Benalmadena villa needed ducted air conditioning installed quickly — summer was already arriving. The property had existing ceiling voids in the bathrooms and rooms but no previous AC system. The requirements were clear: indoor units had to be completely hidden inside the ceiling void (no visible wall splits breaking the room finishes), with independent Airzone room-by-room zone control, and the work had to be done with full protection of the villa's existing finishes — floor tiles, glass shower screens and wall tiles all protected throughout.

Fast turnaround — the owner needed the system running as soon as possible with summer approaching
Fully concealed indoor units — no wall-mounted splits breaking the bathroom or room finishes
Airzone zoning for independent temperature control per room
Clean working conditions — floor tiles, glass shower screens and wall tiles protected throughout
Ceiling access cuts made straight and neat to simplify the plasterer's closing-up work
Tidy external routing of refrigerant line sets along the villa's side elevation

The Equipment: Daikin ARXM35A5V1B9 + Daikin ADEA50A2VEB

Outdoor Units: 2× Daikin ARXM35A5V1B9

The two outdoor units wall-mounted on the villa's side elevation are the Daikin ARXM35A5V1B9, confirmed from the nameplate label clearly visible in the photos. Manufactured January 2026 in Türkiye for Daikin Europe N.V. (Zandvoordestraat 300, B-8400 Oostende, Belgium). Nameplate data: R32 refrigerant / 0.95 kg charge, 36 kg, 13 A max / 11.8 A max, IPX4, 220-240 V~ / 50 Hz, working pressures PS high/low 3.81 / 3.04 MPa, A2L classification, GWP 675, tCO₂eq 0.65.

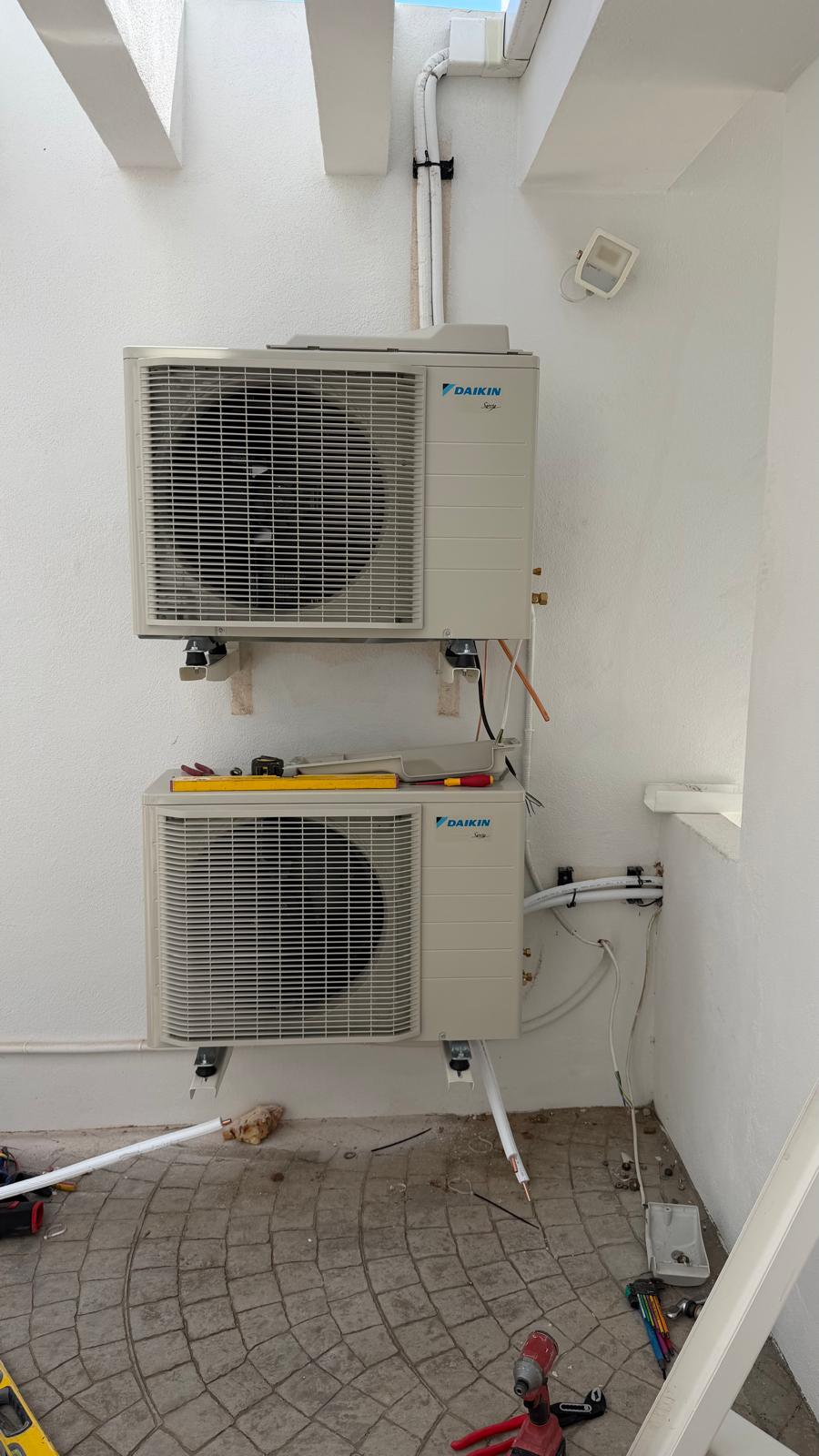

Both Daikin ARXM35A5V1B9 outdoor units wall-mounted stacked on villa side elevation, line set routing upward, installation in progress with tools on ground

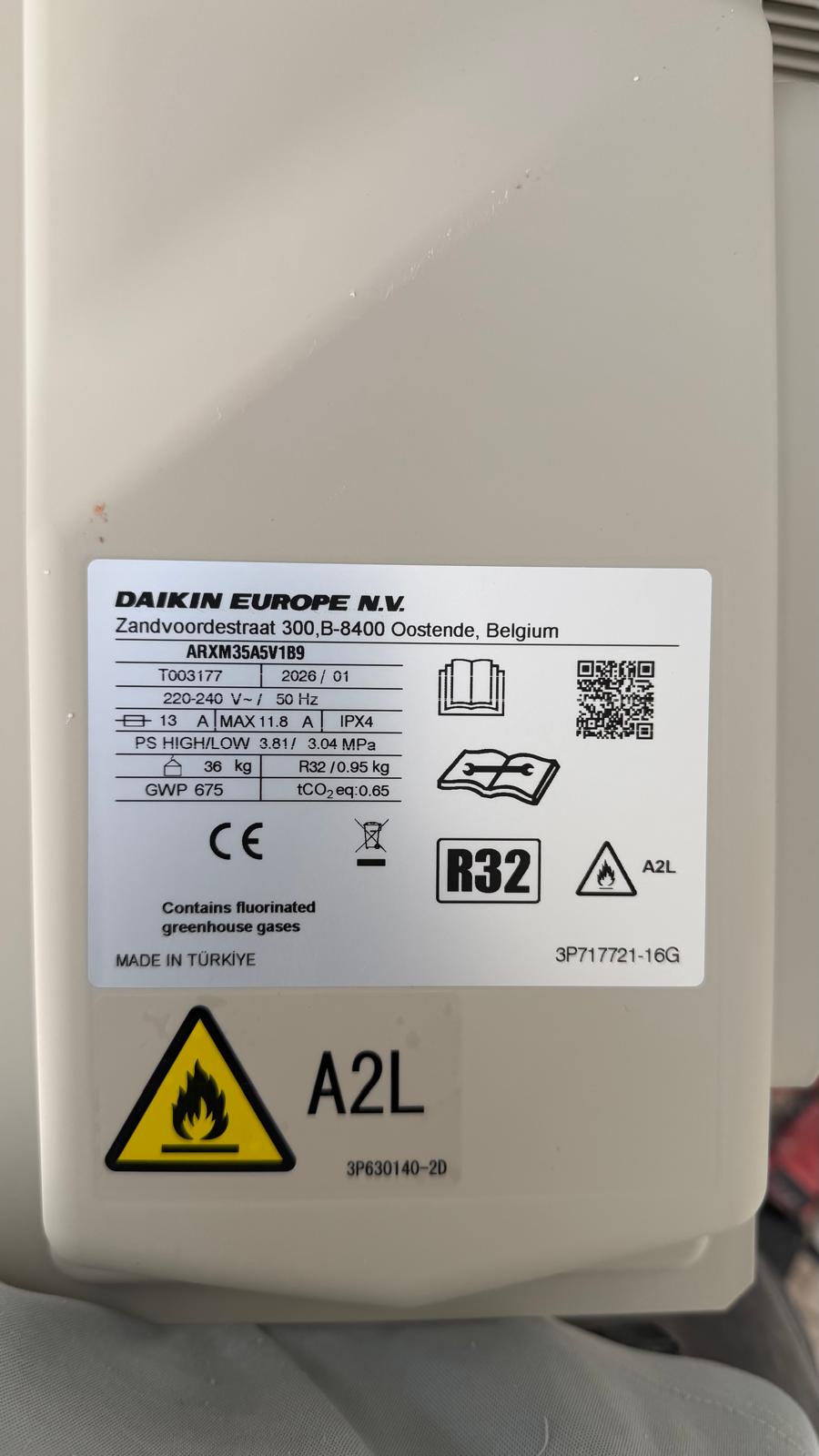

Daikin ARXM35A5V1B9 nameplate: R32/0.95 kg, 36 kg, GWP 675, A2L, 13 A max, Made in Türkiye, January 2026, Daikin Europe N.V. Belgium

Indoor Units: Daikin ADEA50A2VEB (Ceiling-Concealed Ducted)

The indoor units installed are the Daikin ADEA50A2VEB, manufactured January 2026 by Daikin Industries Czech Republic s.r.o. (U Nove Hospody 1155/1, 301 00 Plzeň, Czech Republic). Nameplate data: 220-240 V~ / 50 Hz (also 220 V~ / 60 Hz rated), 1.4 A, 28 kg, IPX0, A2L classification, maximum working pressure 4.17 MPa. Ceiling-concealed ducted fan-coil unit — the only visible elements in the finished room are the supply grille and the return air grille.

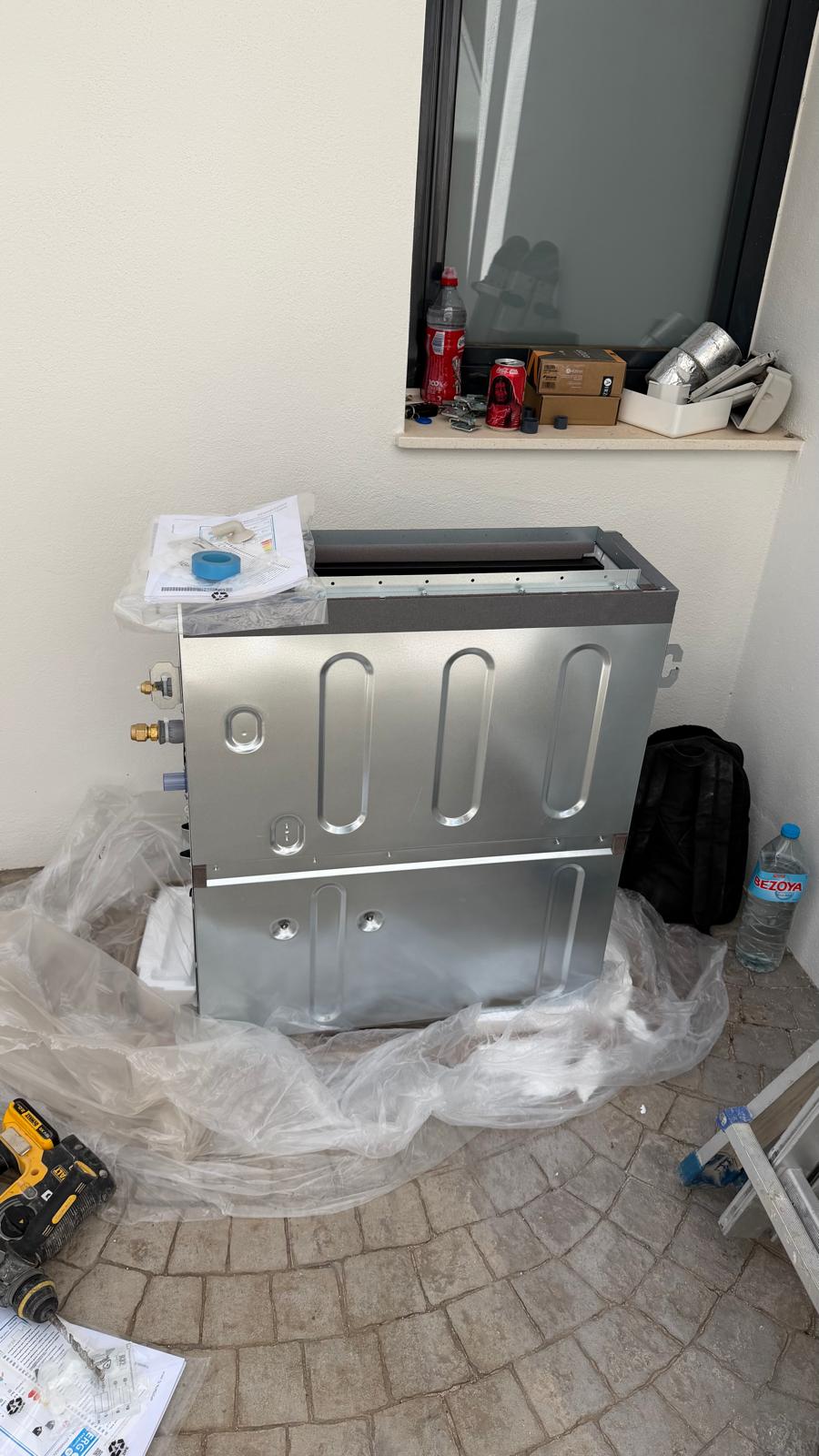

Daikin ADEA50A2VEB indoor unit unboxed on terrace, still in protective polythene wrapping, ready for installation

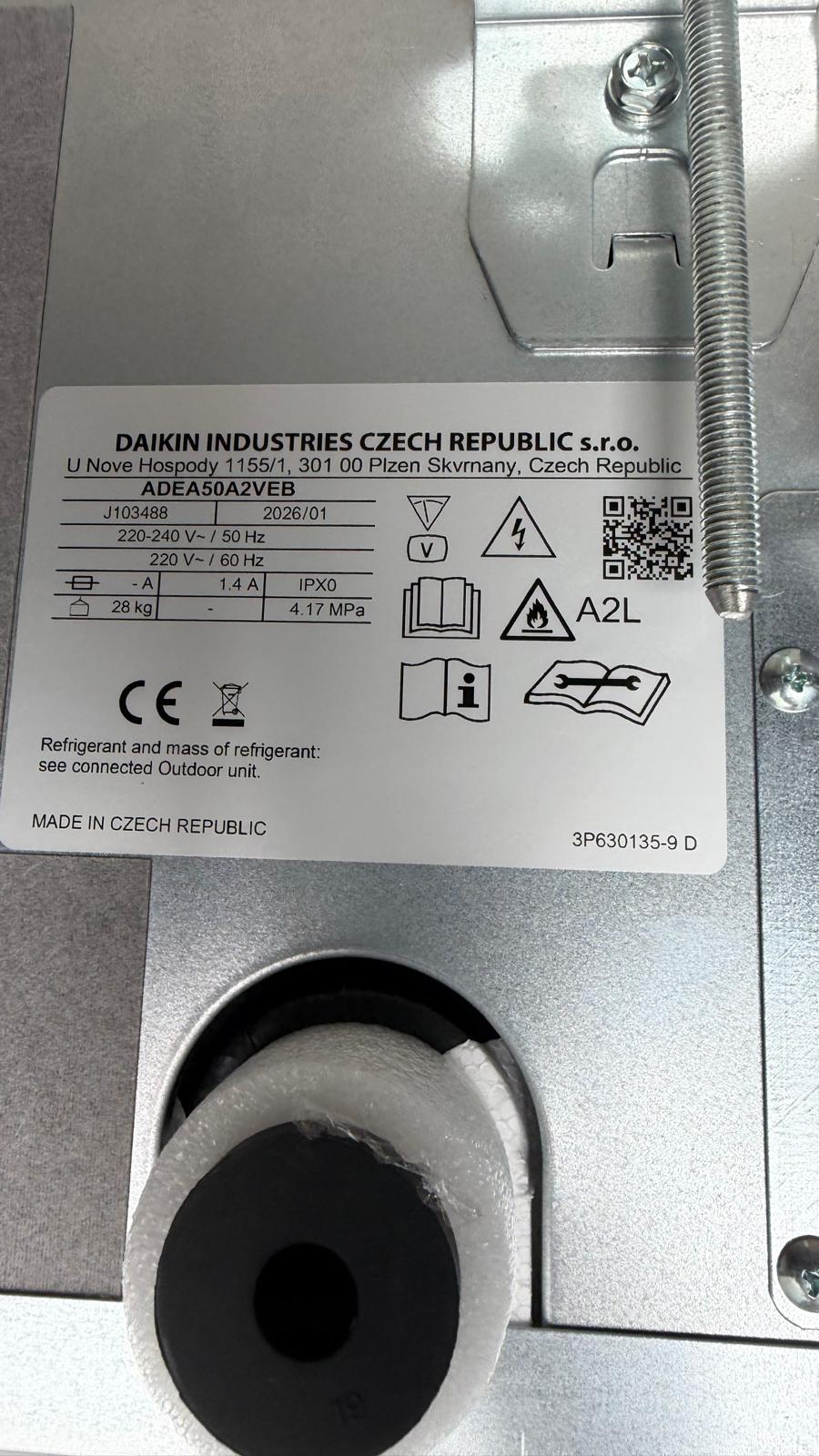

Daikin ADEA50A2VEB nameplate: Daikin Industries Czech Republic s.r.o., 1.4 A, 28 kg, IPX0, A2L, January 2026, Made in Czech Republic

Airzone Zoning: Independent Room-by-Room Control

The system includes Airzone zoning, visible in the photos from the motorised zone dampers and Airzone control bus wiring routed through the ceiling voids. Airzone allows each room to maintain its own temperature setpoint independently — when a zone is unoccupied the damper closes and the Daikin compressor reduces its load accordingly, delivering real electricity savings versus a single-zone system. On a Benalmadena villa running AC from May to October, proper zoning makes a meaningful difference to the summer electricity bill.

Rob Greeves — Daikin Certified Installer, Costa del Sol

"The ADEA50A2VEB is Daikin's workhorse ceiling-concealed ducted unit for Costa del Sol villas — built in Plzeň and refined over years for exactly this kind of installation. What you see in the photos, the unit hanging on the acrow prop while we level and connect it, is the correct process: you enter the void, hang the unit off the unistrut channels, level it, connect the copper line set and condensate, and then you leave. When the plasterer closes that ceiling, you will not see that unit again for ten years. That is exactly why we default to Daikin in this category — the fan bearings, the motor, the heat exchanger are all long-life components. The alternative of putting cheap kit inside a plastered ceiling on a Benalmadena villa is a recipe for an expensive problem at the worst possible moment. The two ARXM35A5V1B9 units on the side wall are R32 / A2L — the nameplate makes it clear: 0.95 kg charge, GWP 675. These are the units built in Türkiye for the European market, carrying Daikin Europe's Belgian stamp. The A2L refrigerant handling on site, the Testo digital manifold commissioning, the nitrogen pressure test you can see in the photos — all of that is F-Gas work. It is not something you improvise."

Rob Greeves

Technical Director, Agua Therm

Craig Whitham — Electrical Lead, Agua Therm

"On a ducted AC install with Airzone there are two things you do not cut corners on. First: the inverter compressor circuits — both ARXM35A5V1B9 units — each go on their own Type A 30 mA RCBO. Not Type AC. Type AC is blind to the pulsating DC component that an inverter compressor can generate during a winding fault — it will not trip when it should, and that is the failure mode where someone gets hurt. On this Benalmadena installation, Type A on every compressor circuit, no exceptions. Second: the Airzone communication bus is low-voltage but it does not tolerate interference. It runs in its own conduit, separated from the 230 V mains, on dedicated control cable. Run the Airzone bus alongside a power circuit and you will get intermittent zoning faults that nobody can diagnose for months — dampers will open and close randomly and the client will assume the system is faulty when in reality it is a wiring problem. What you see in the ceiling-void photos — the white Airzone wiring running separately from the power cables — is not accidental. That is the correct way to do the installation."

Craig Whitham

Electrical Lead, Agua Therm

Installation Process

Site survey: ceiling void depths measured in each room and route planned for refrigerant line sets to the outdoor units on the side elevation

Ceiling access openings cut straight and clean to simplify the plasterer's close-up

Daikin ADEA50A2VEB indoor units raised into the ceiling void and supported temporarily with steel acrow props (visible in photos) while levelling and connecting

Copper refrigerant line sets run to outdoor units with neat external trunking; condensate drain runs to waste in white PVC

Airzone control bus wiring (low-voltage) routed separately from 230 V mains inside the ceiling void

Both Daikin ARXM35A5V1B9 outdoor units mounted to the villa's side wall, stacked, with line sets rising in surface trunking

Professional commissioning: Testo digital manifold connected to service ports, nitrogen cylinder for pressure testing (both visible in photos), full cooling and heating cycle test

Full protection of finishes throughout: floor covering, shower screens and wall tiles protected

Real Installation Photos

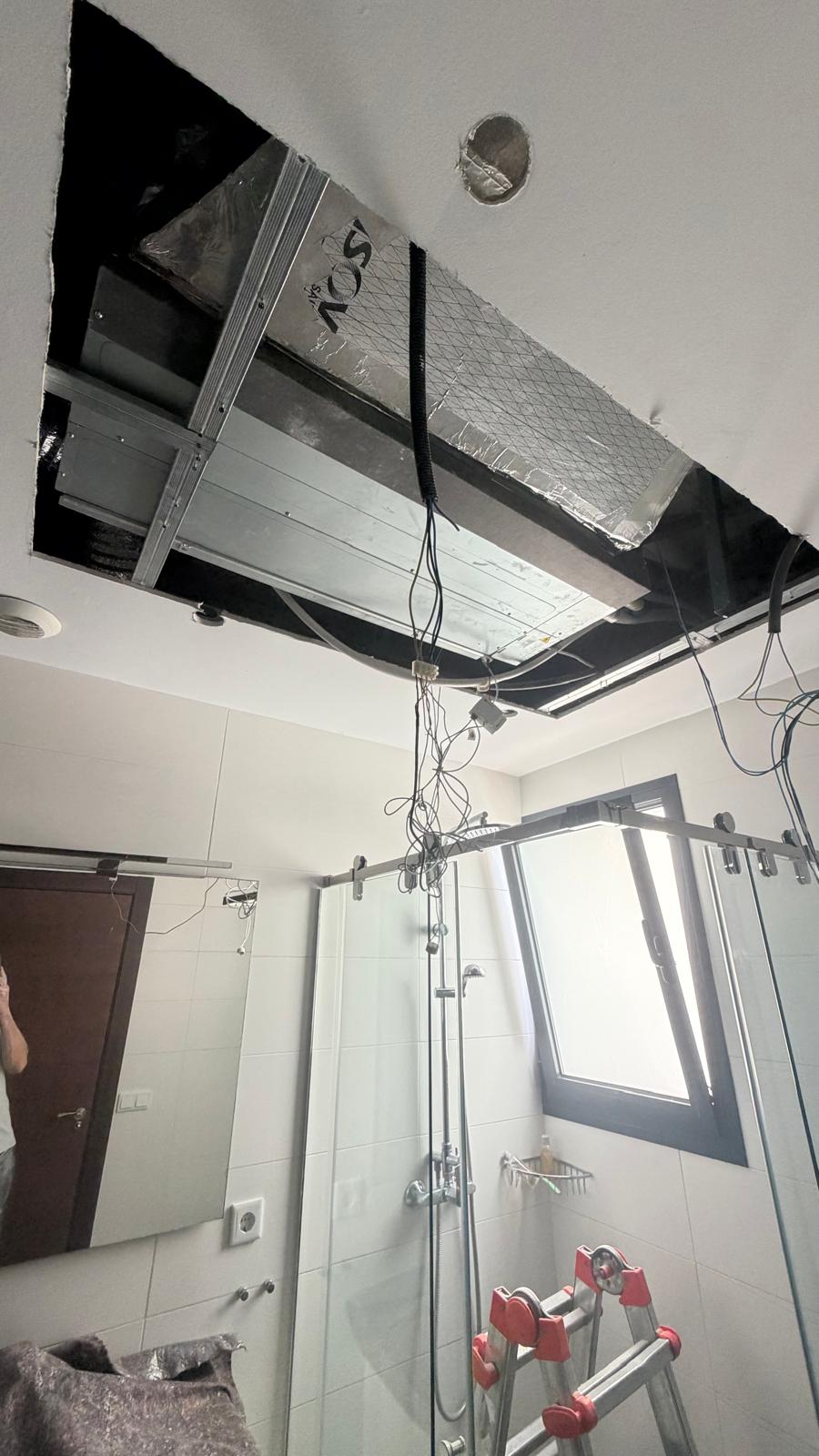

Daikin ADEA50A2VEB indoor unit installed in bathroom ceiling void, ADSI foil duct insulation visible, Airzone control wiring hanging down, glass shower screen below

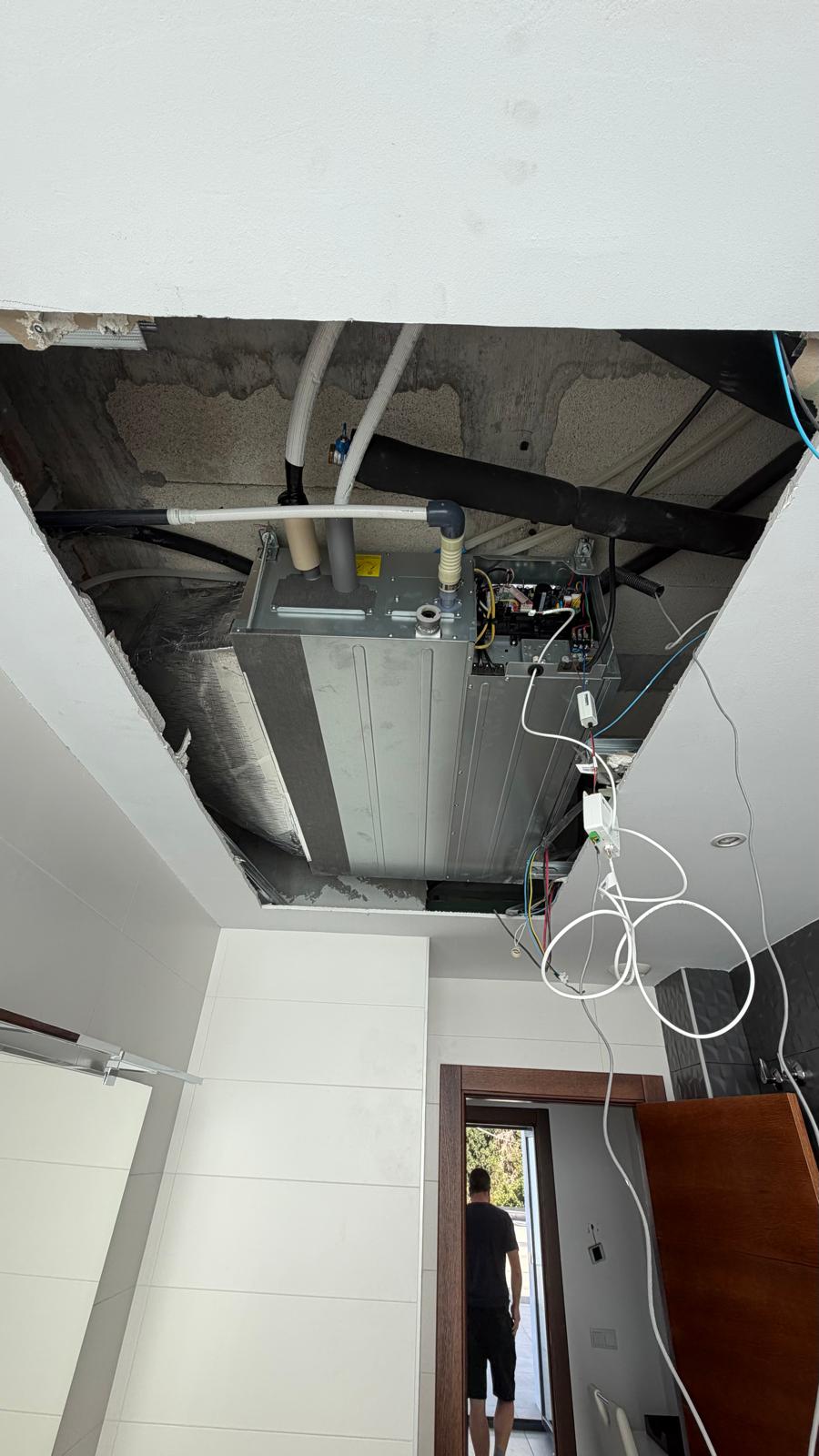

Underside view of Daikin indoor unit in ceiling void: grey unit body, condensate drain PVC pipe, Airzone control wiring, technician visible in background

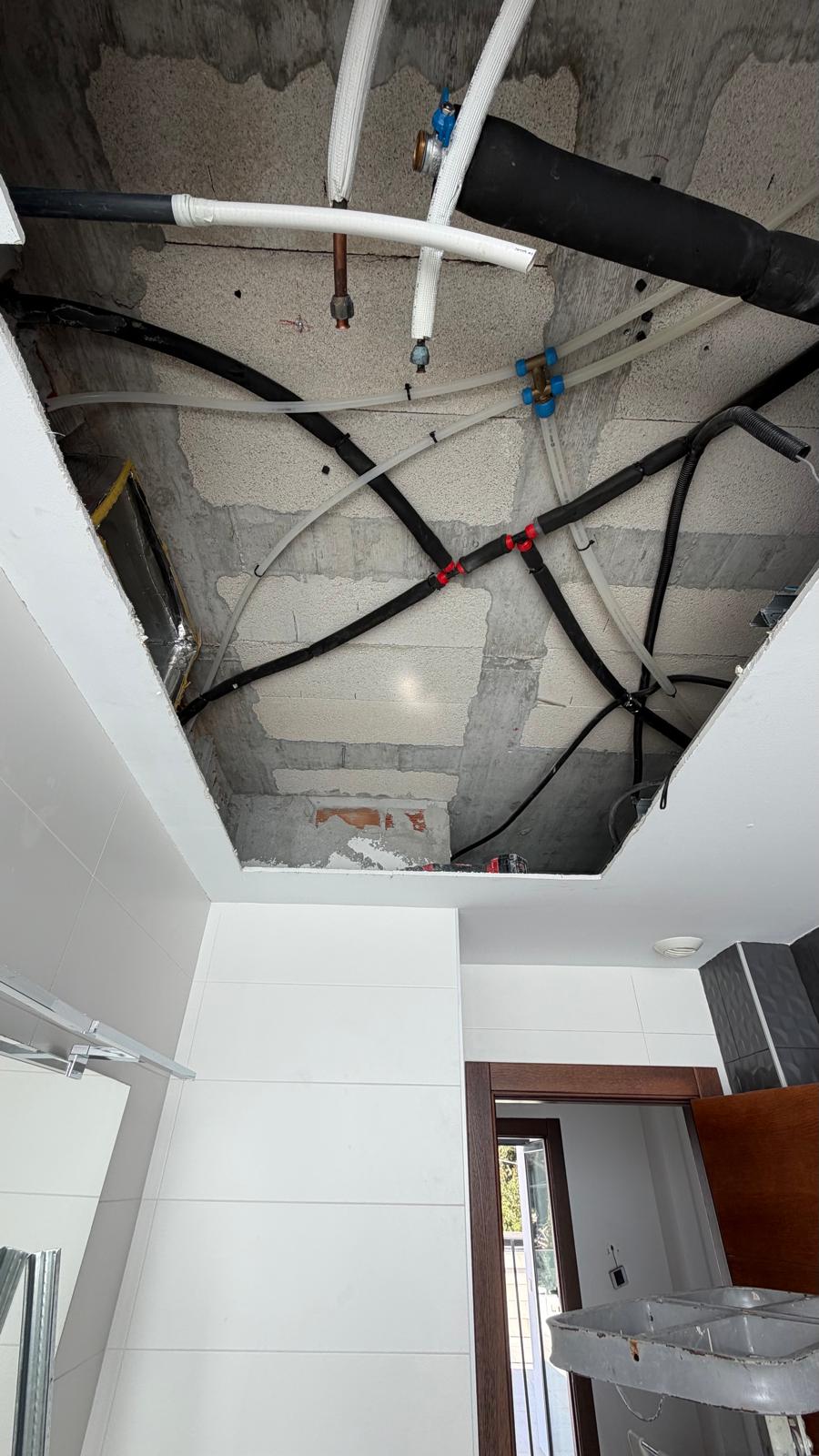

Ceiling void opened showing existing villa concrete block construction, insulated refrigerant lines (black), white plumbing pipes and Airzone actuator wiring

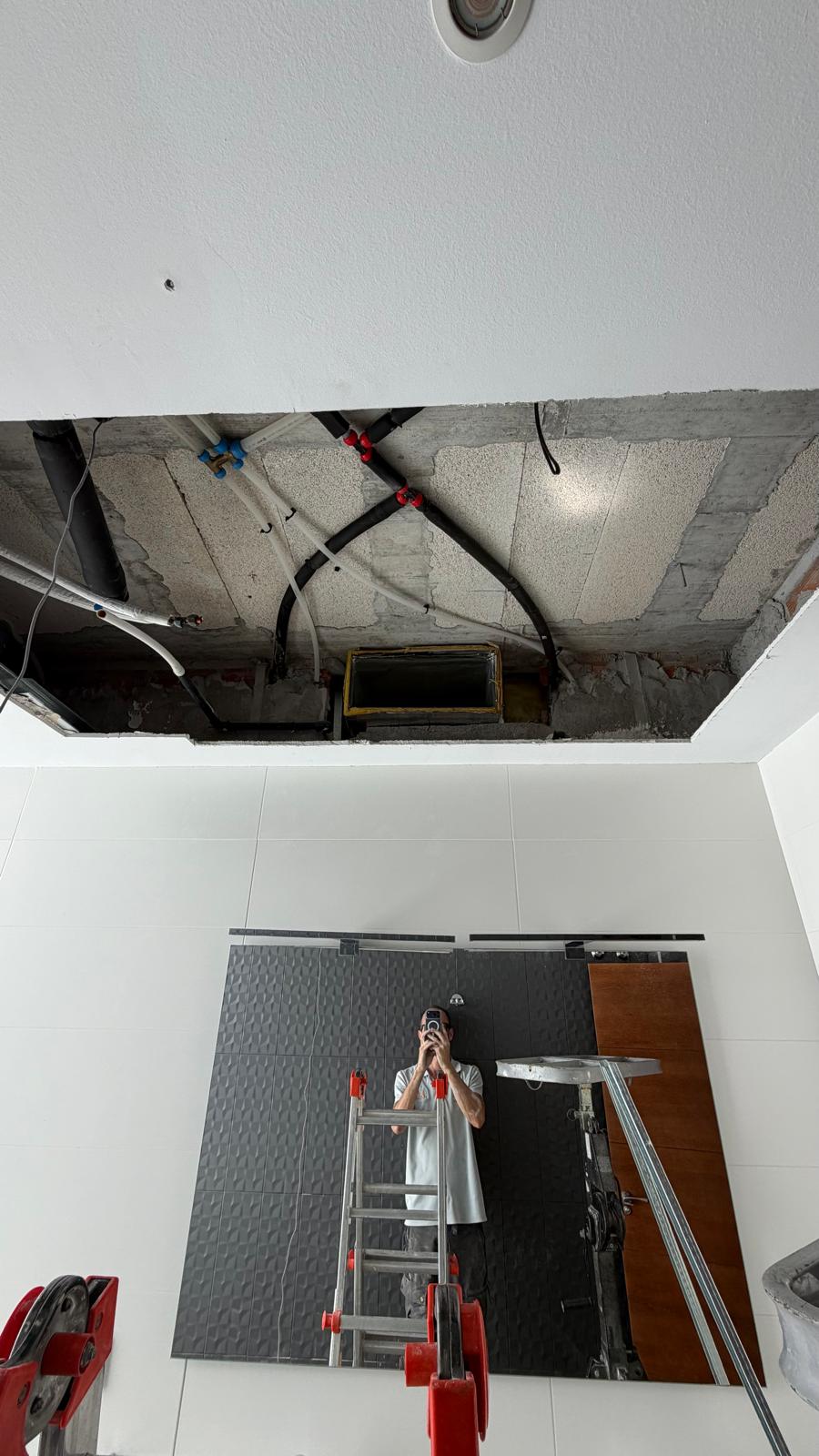

Second ceiling void: refrigerant lines routed (black insulation with blue/red valve fittings), supply grille aperture cut into ceiling, technician reflected in mirror below

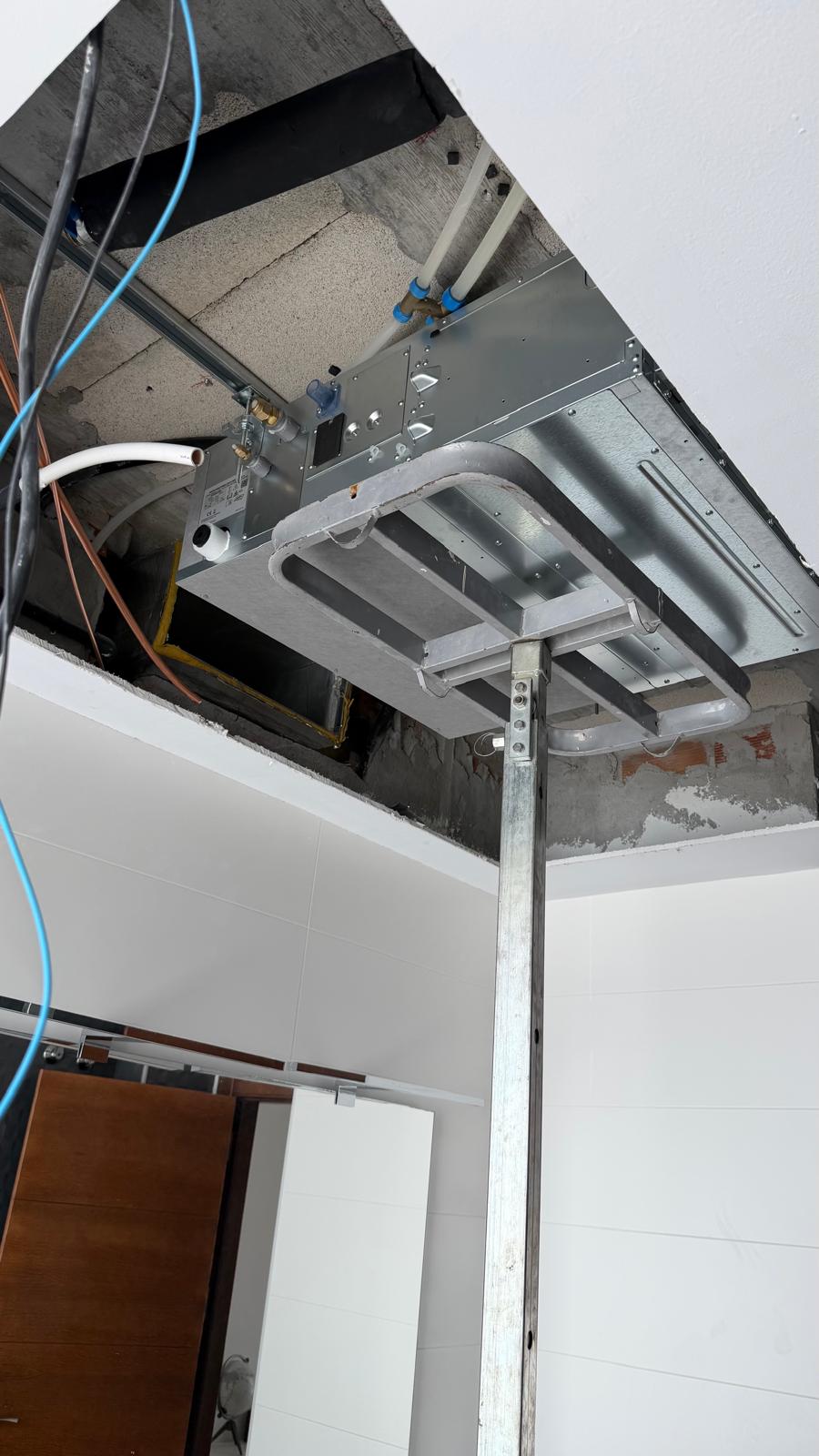

Daikin indoor unit being raised into ceiling void supported by steel acrow prop, blue and orange refrigerant lines visible in background

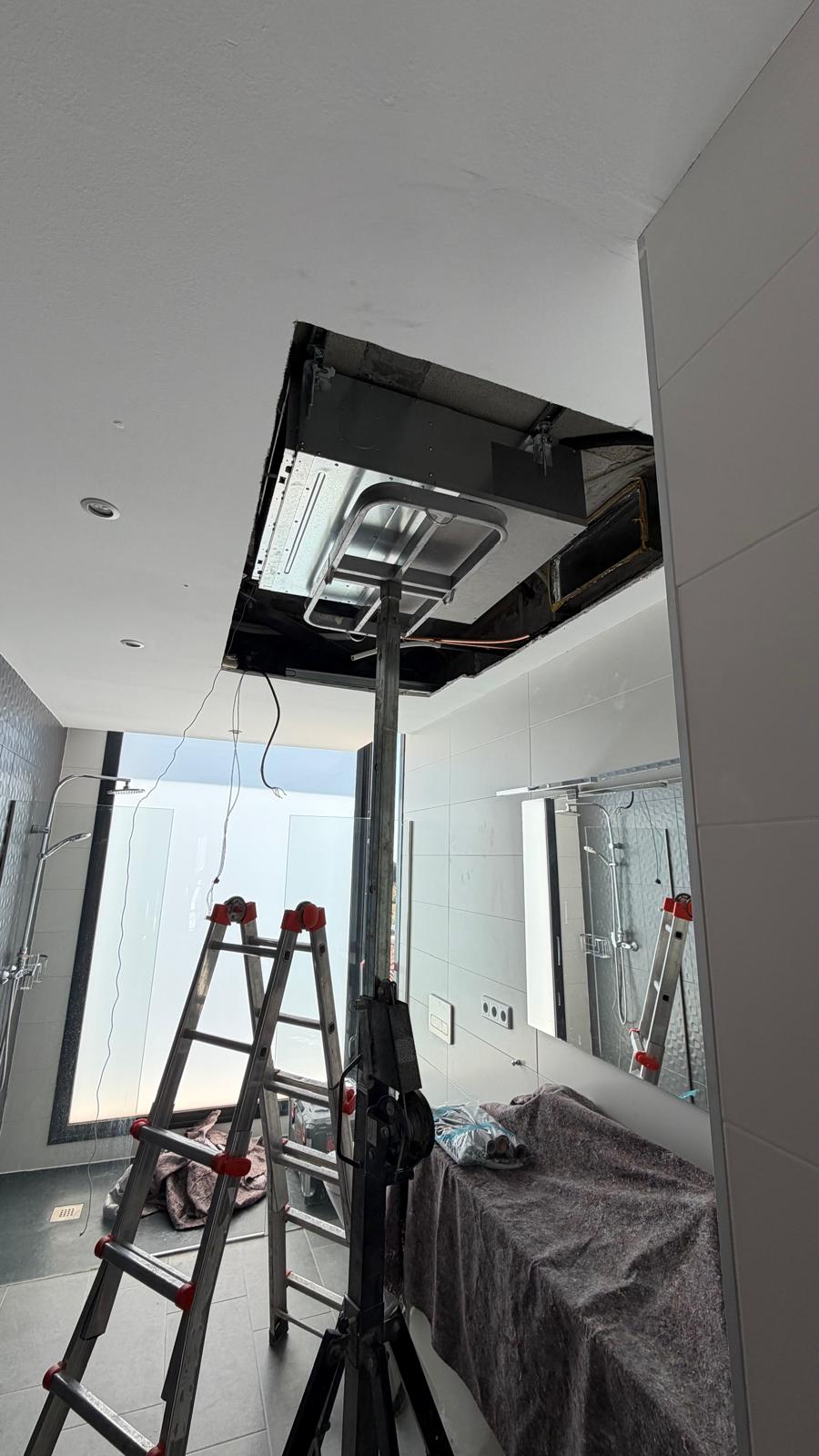

Master bathroom en-suite: indoor unit in ceiling access opening, two ladders and protective work table in place, large glass shower screen visible

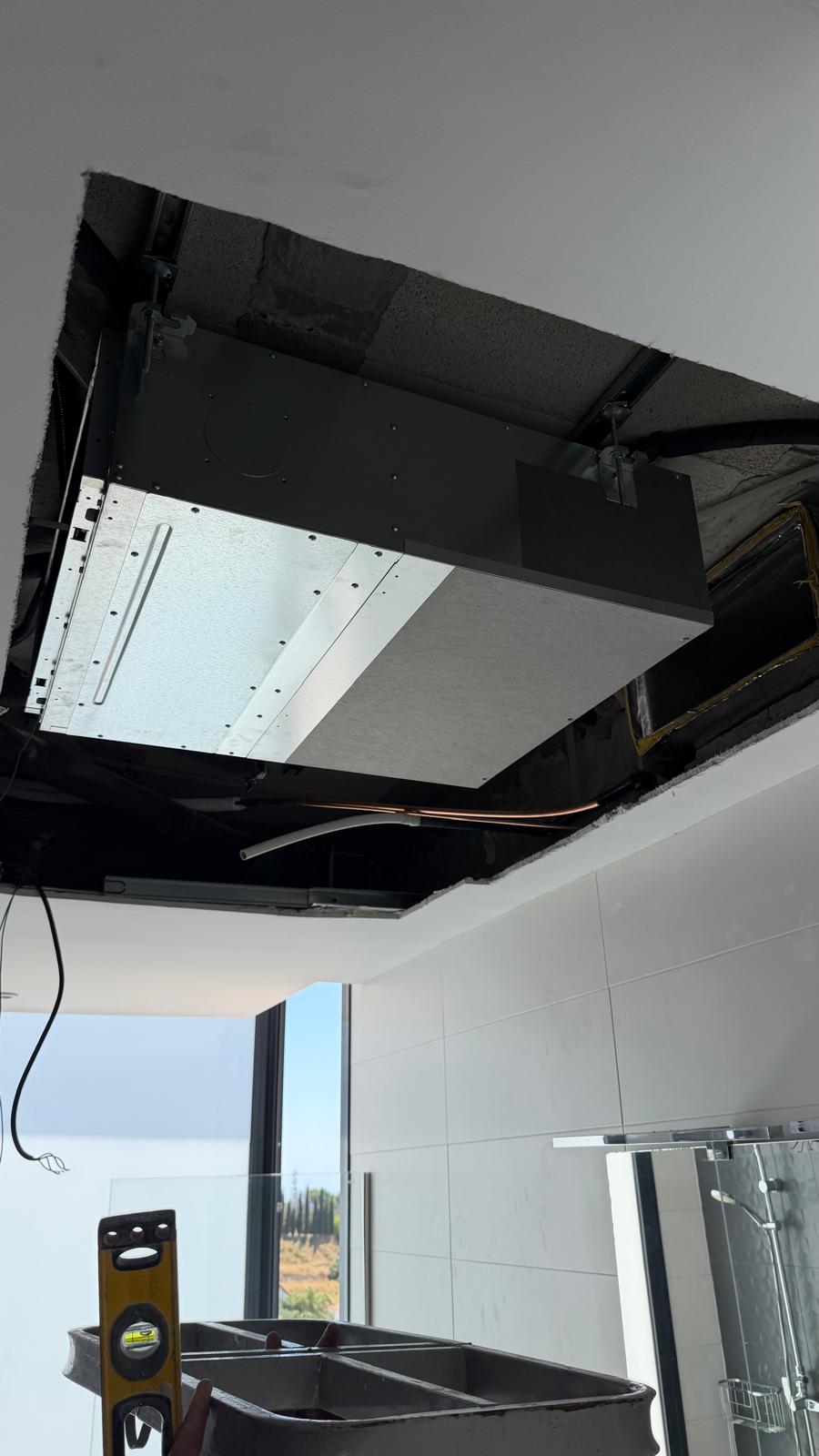

Daikin indoor unit in ceiling void close-up: copper line connection at side visible, spirit level on work surface, glass shower screen below

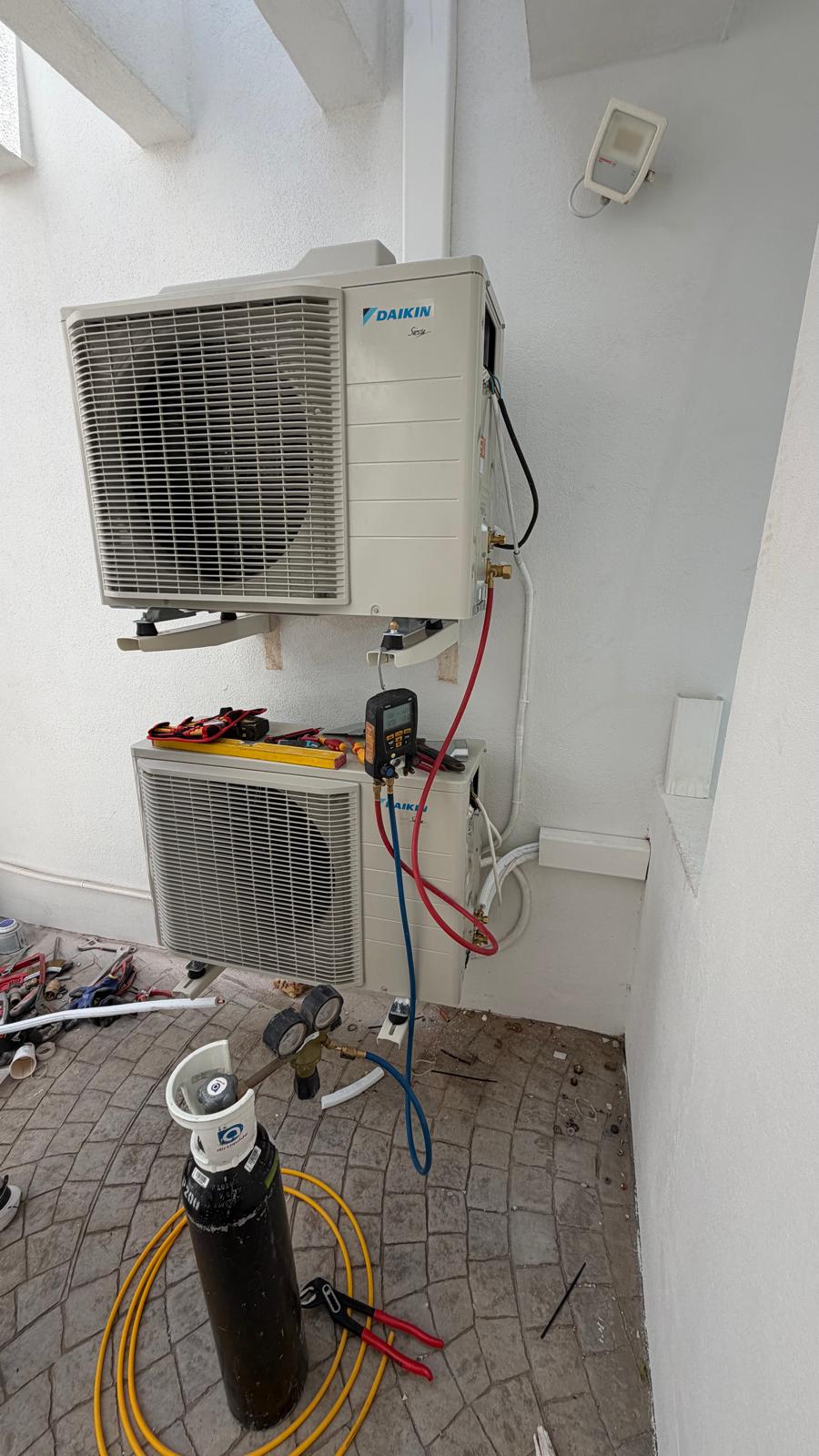

Commissioning: both outdoor units with Testo digital manifold gauge connected to service ports, nitrogen cylinder on floor with yellow hose, red and blue manifold hoses

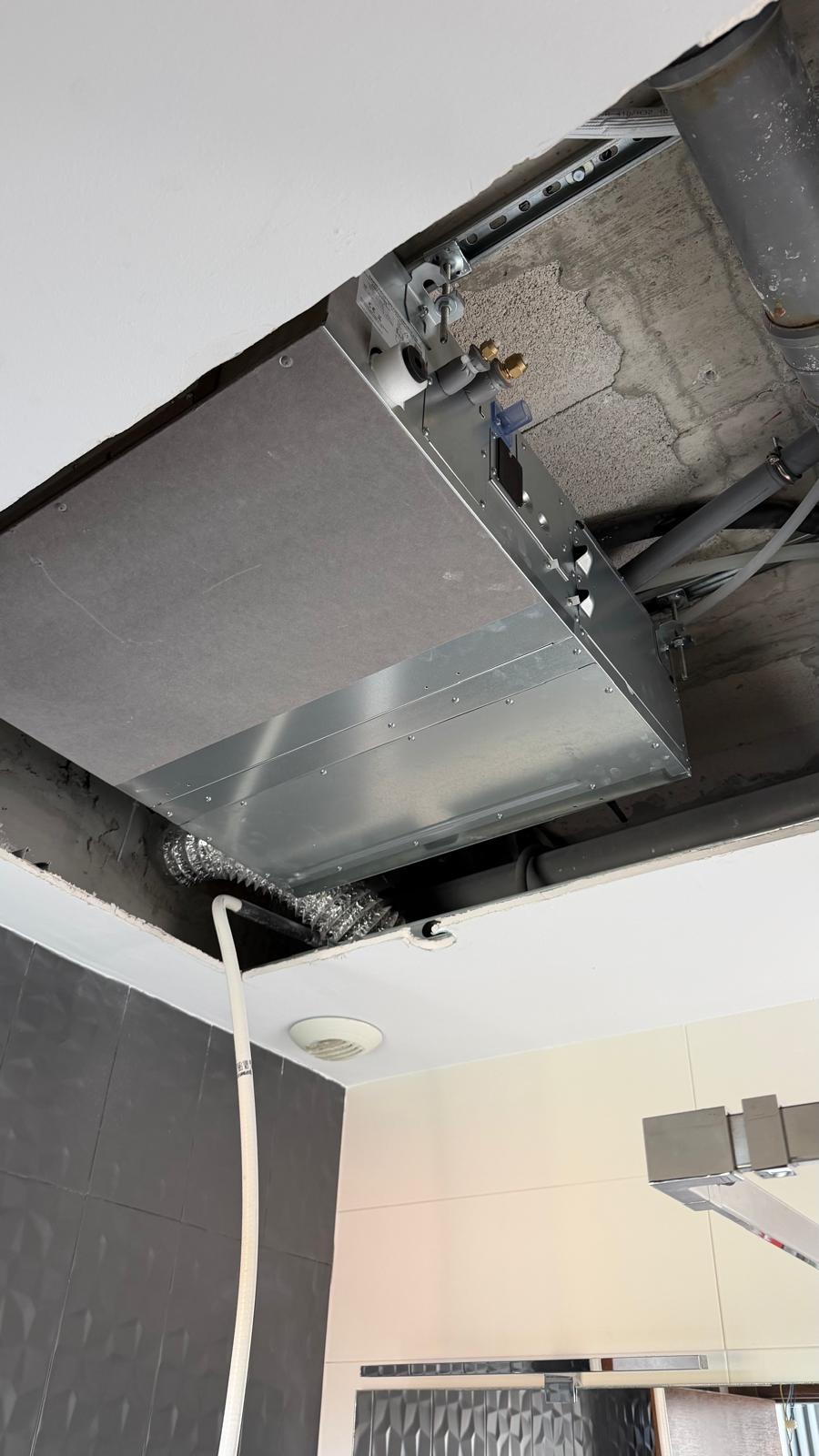

Daikin unit installed in third room: aluminium flex duct connection visible bottom-left, dark grey tile bathroom surround, supply grille aperture position

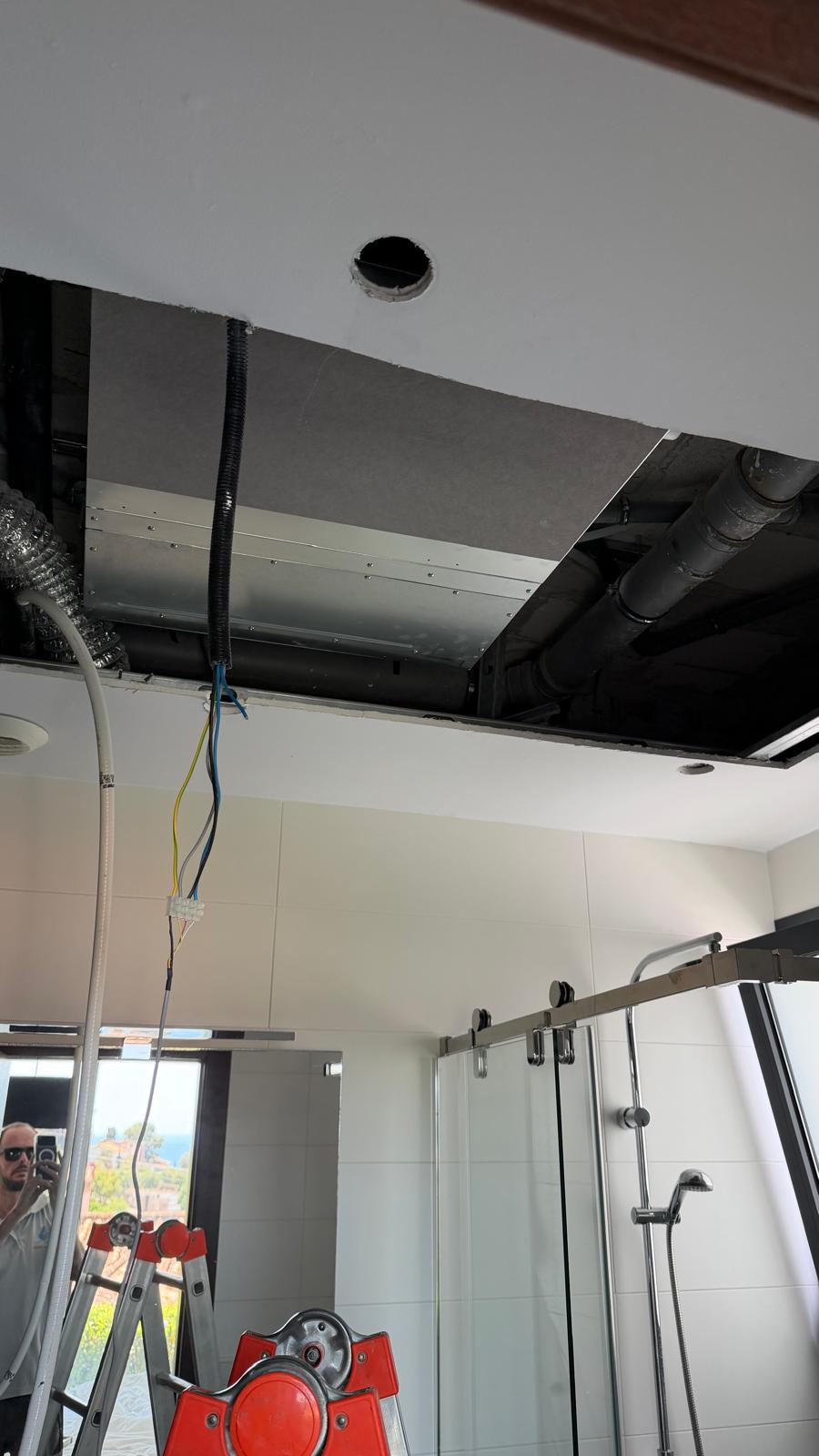

Bathroom ceiling void: unit installed with flex duct (left), electrical wiring (yellow/green, blue), corrugated conduit, glass shower screen below

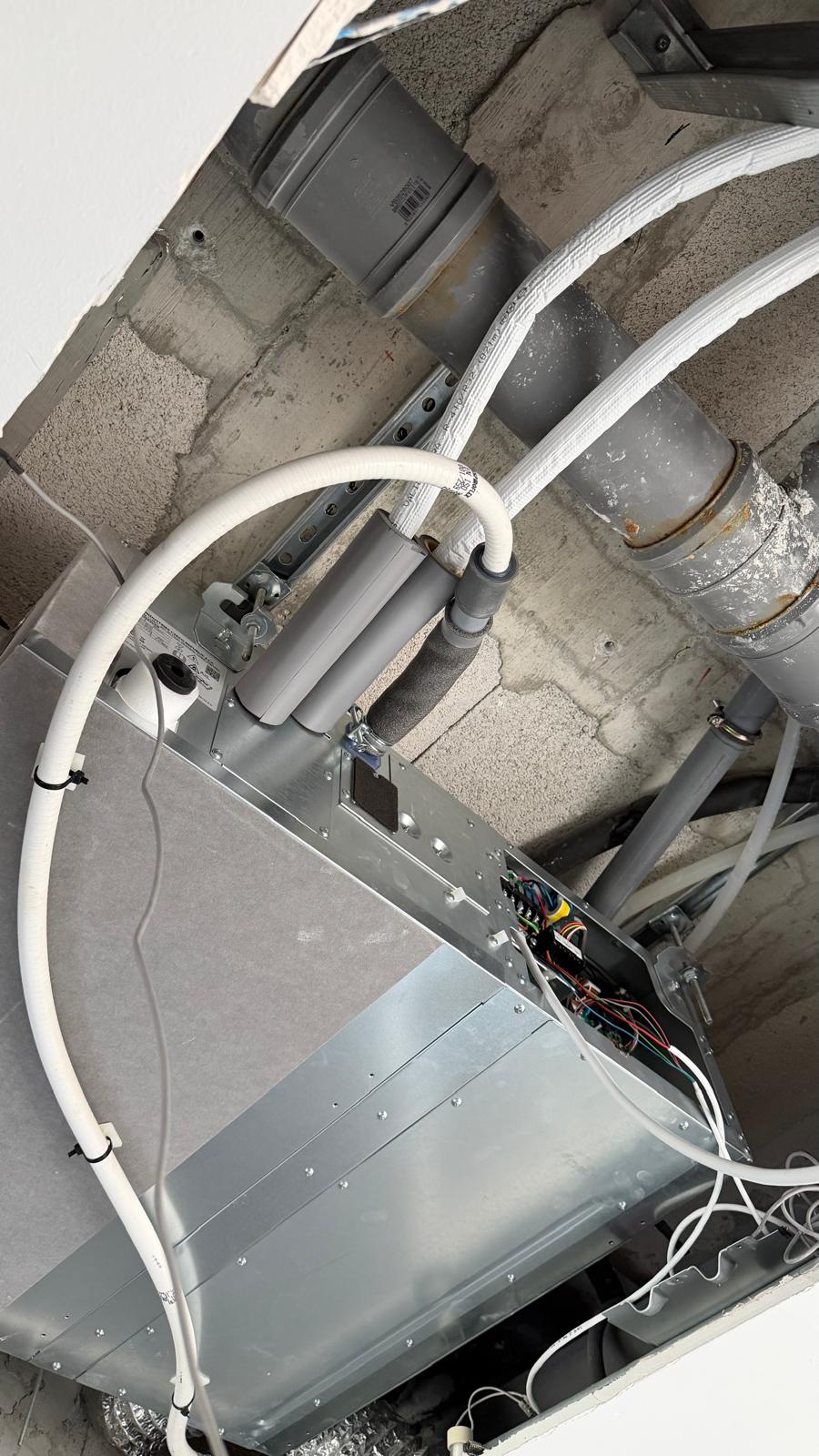

Indoor unit in ceiling void close-up: control board PCB area, condensate drain pipe connections, white refrigerant pipe insulation, concrete block villa ceiling structure

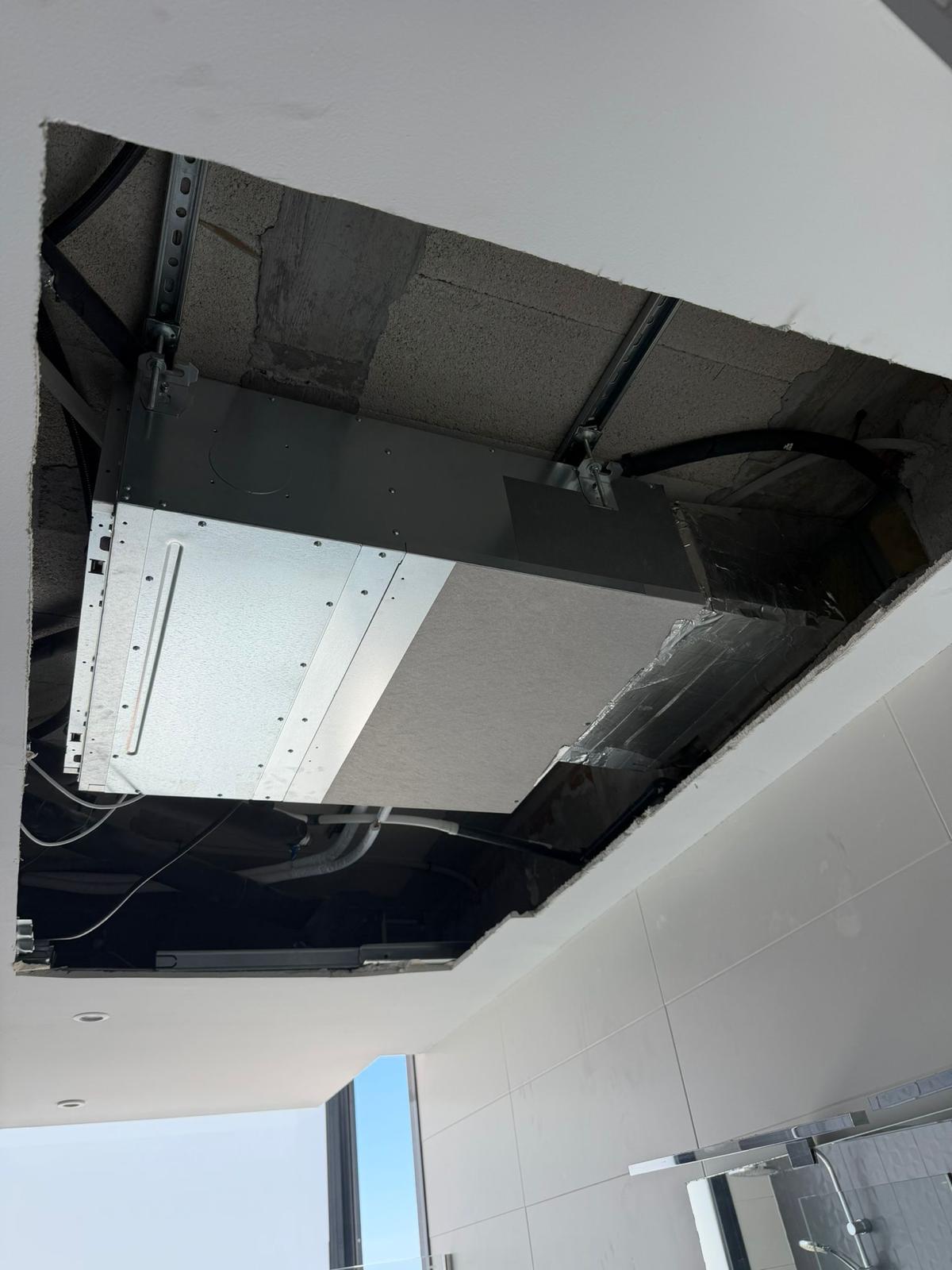

Indoor unit in ceiling void: unistrut ceiling channels, Airzone insulated ductwork plenum with aluminium tape (right), unit body, white tile bathroom and glass shower below

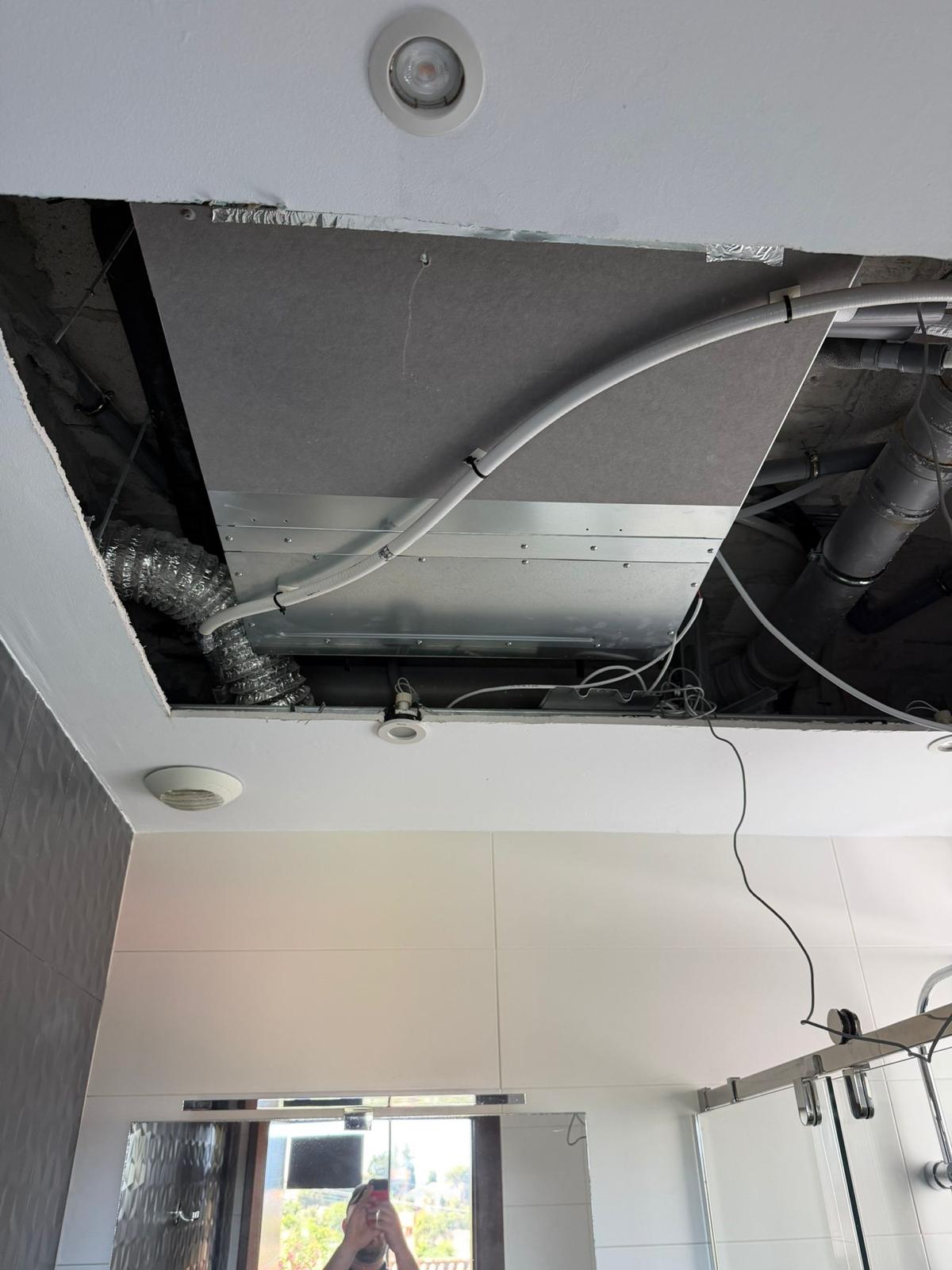

Bathroom ceiling void: unit installed with aluminium flex duct (left), white PVC condensate drain, Airzone control wiring, technician reflected in mirror below

Verified Technical Specifications

Outdoor unit	Daikin ARXM35A5V1B9 (×2)
Outdoor manufacturer	Daikin Europe N.V., Belgium — made in Türkiye
Outdoor manufacture date	January 2026
Refrigerant	R32 — A2L, GWP 675, 0.95 kg per unit
Outdoor weight	36 kg each
Outdoor max current	13 A / 11.8 A
Outdoor protection	IPX4
Indoor unit	Daikin ADEA50A2VEB (multiple)
Indoor manufacturer	Daikin Industries Czech Republic s.r.o., Plzeň
Indoor manufacture date	January 2026
Indoor current	1.4 A
Indoor weight	28 kg
Indoor protection	IPX0
A2L classification	Both unit types
Zoning	Airzone (motorised dampers, control bus wiring)
Commissioning	Testo digital manifold — full cooling and heating cycle
Location	Benalmadena, Costa del Sol

Professional commissioning: Testo digital manifold gauge connected to the Daikin outdoor units, nitrogen cylinder visible in the foreground.
