Marbella: Emergency Sime Boiler Repair - Failed Circulation Pumps & Thermostat Replacement
Case Study: Diagnosing and Repairing Failed Grundfos Pumps and Faulty Thermostat in Luxury Villa Plant Room

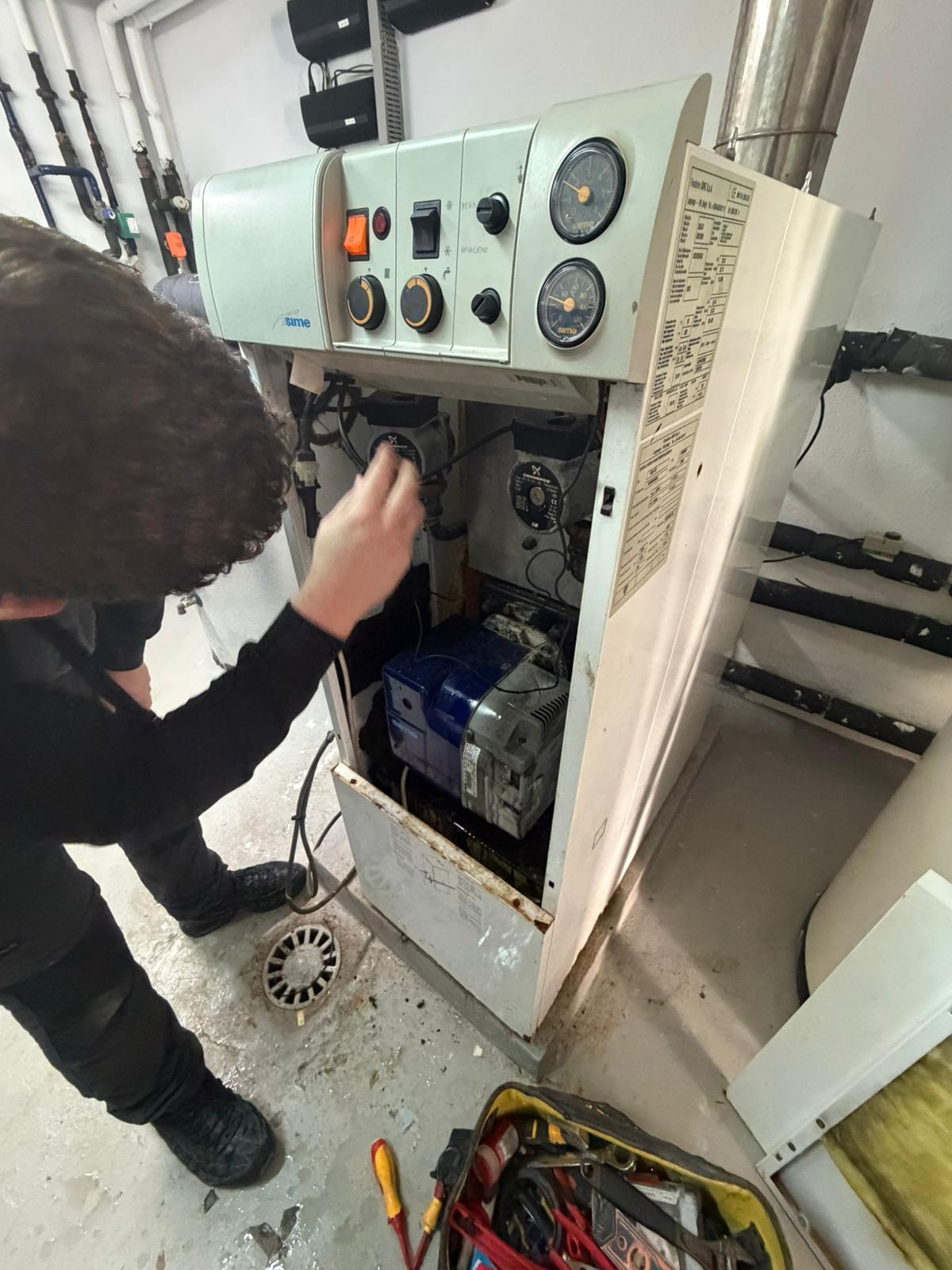

Technician inspecting inside the Sime boiler with Grundfos pumps

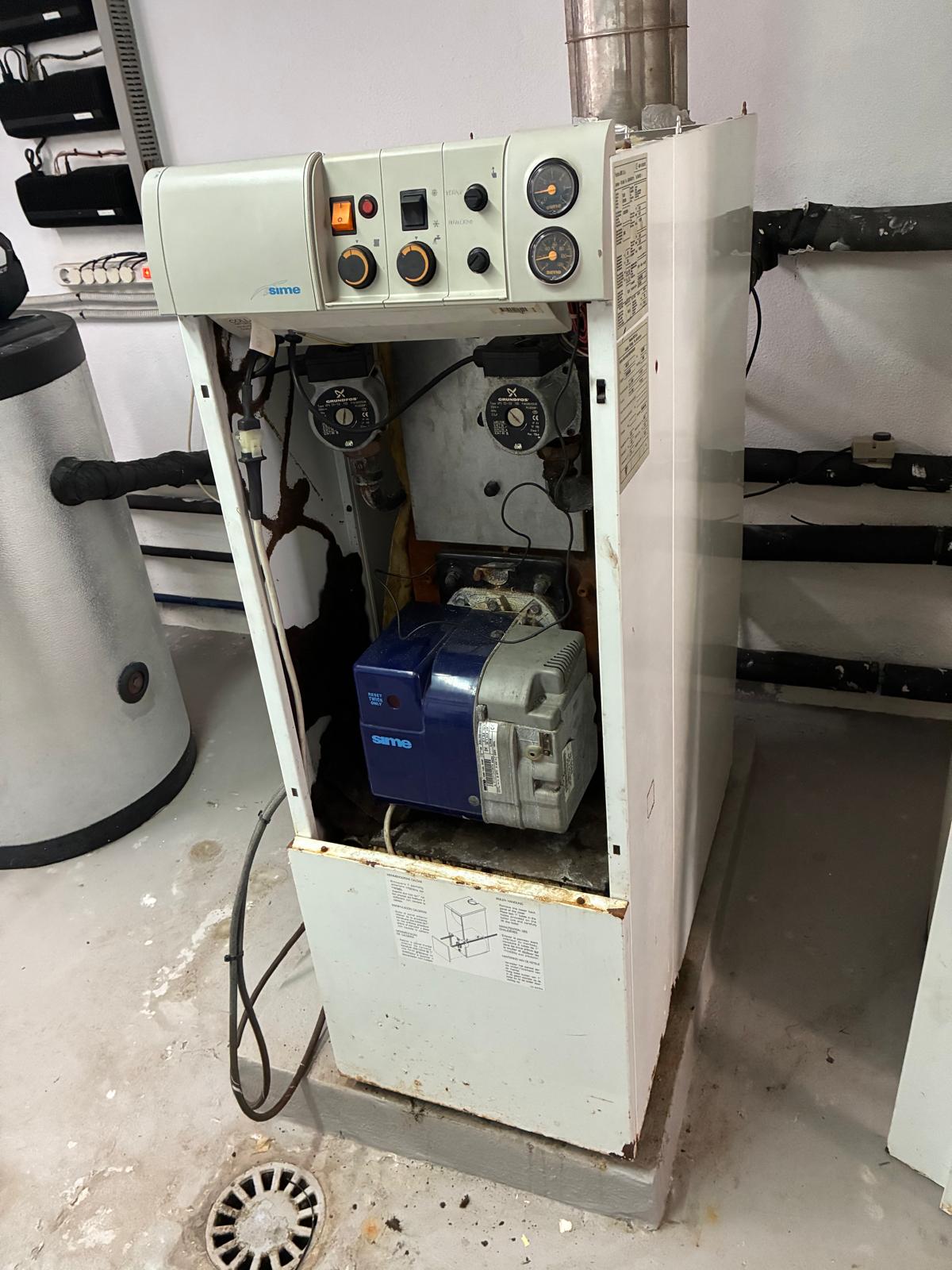

Full front view of Sime boiler with failed Grundfos circulation pumps

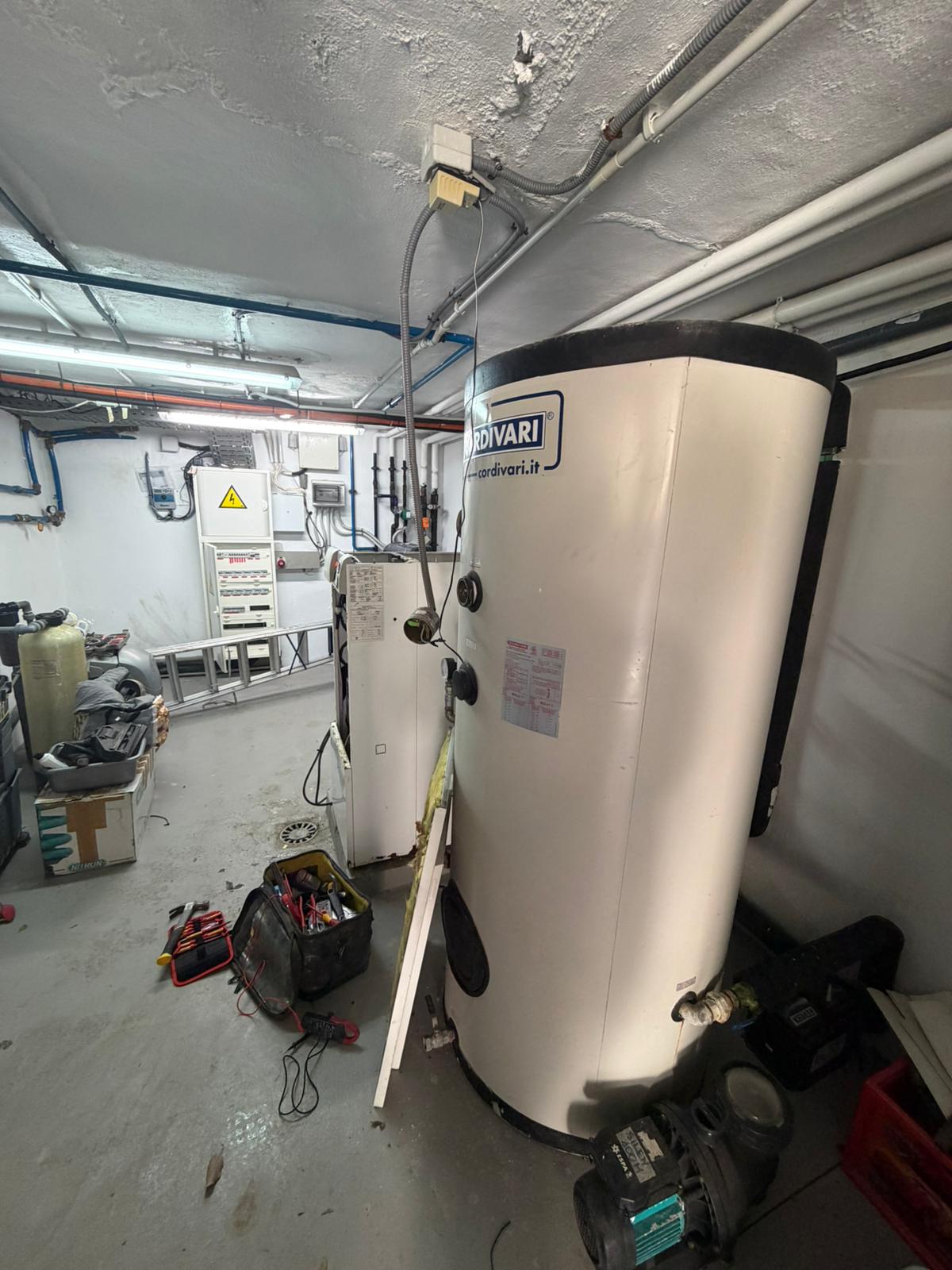

Plant room with Cordivari hot water cylinder and electrical distribution board
Location
Marbella, Costa del Sol
Property Type
Luxury Private Villa
System Repaired
Sime Oil/Gas Boiler System
Components Replaced
2x Grundfos Circulation Pumps + Thermostat
The Challenge
The villa owner contacted Agua Therm on an emergency basis after their heating system completely failed during a cold February night. The symptoms and challenges included:
- Villa lost all heating and hot water due to circulation pump failure
- Both Grundfos circulation pumps had seized - a common issue in older boiler systems with infrequent use
- Thermostat malfunctioning and not reading temperatures correctly, causing erratic boiler behaviour
- Sime boiler displaying error codes due to lack of water circulation through the system
- Owner needed urgent repair as winter temperatures in Marbella can drop to 5-8°C at night
- Large Cordivari hot water storage cylinder not receiving heated water from the boiler
Our Solution: Complete Boiler System Repair
After an emergency call-out and thorough diagnostic of the entire heating system, our HVAC engineers identified the root causes and carried out the following repairs:
Full Boiler Diagnostic
Comprehensive inspection of the Sime boiler, identifying both seized Grundfos pumps and faulty thermostat as the root cause of the system failure
Pump Replacement (x2)
Replaced both failed Grundfos circulation pumps with new energy-efficient Grundfos UPS models for reliable water circulation
Thermostat Upgrade
Replaced the faulty thermostat with a modern programmable unit providing precise temperature control and scheduling
System Flush & Recommission
Full system flush to remove debris from the failed pumps, pressure tested and recommissioned the entire heating circuit including Cordivari cylinder connections and safety valve
Verified Boiler & Pump Efficiency Benefits
Modern circulation pumps and smart thermostats deliver significant efficiency improvements over older components. These benefits are backed by authoritative sources:
Modern Grundfos pumps use up to 80% less energy
New-generation Grundfos UPS circulation pumps are designed with energy-efficient motors that dramatically reduce electricity consumption compared to older fixed-speed models
Source: GrundfosProper pump circulation improves boiler efficiency by 15-20%
When circulation pumps operate correctly, hot water distributes evenly throughout the system, reducing boiler cycling and wasted energy
Source: Energy Saving TrustSmart thermostats reduce heating bills by 10-15%
Programmable and smart thermostats optimise heating schedules and prevent energy waste by learning usage patterns and allowing remote control
Source: Nest/GoogleAnnual boiler servicing extends equipment life by 5-10 years
Regular maintenance catches minor issues before they become major failures, keeps components running efficiently, and ensures safety compliance
Source: HVAC Industry DataEU ErP Directive 2009/125/EC sets minimum energy efficiency standards for circulation pumps. Since 2015, only high-efficiency pumps meeting EEI ≤ 0.23 may be sold in Europe, making replacement pumps significantly more efficient than older models.
Sime boiler pump failures are one of the most common emergency calls we receive from Mediterranean villas, and the root cause is almost always the same - infrequent use. When a boiler sits idle for months during the warm season, the Grundfos circulation pumps can seize up as internal components corrode and scale builds up on the impeller. This is why we always stress the importance of annual boiler servicing - a good engineer will run the pumps and check for early signs of failure before winter arrives. The good news is that Grundfos replacement pumps are the gold standard for reliability. They're built to last and the modern UPS range is incredibly energy-efficient. As for the Sime boiler itself - these are well-engineered Italian machines. With proper maintenance, a Sime boiler can run reliably for two to three decades. The key is not letting it sit dormant without a proper service plan.
Rob Greeves
HVAC Director, Agua Therm
Electrical Safety & Smart Thermostat Integration
Whenever we attend a boiler repair, the electrical side is just as important as the mechanical. On this job, we thoroughly checked the electrical supply to the Sime boiler - verifying the fused spur, earth connections, and wiring integrity. The old thermostat had degraded wiring connections that were contributing to intermittent readings, which is why the boiler was behaving erratically even before the pumps fully seized. We replaced it with a modern programmable thermostat and took the opportunity to tidy up all the control wiring. For holiday home owners on the Costa del Sol, I always recommend considering a smart thermostat with Wi-Fi capability. It allows you to monitor your villa's heating remotely from anywhere in the world - you can check the temperature, turn the heating on before you arrive, and most importantly, get alerts if the system goes offline. For a villa that sits empty for months, this kind of remote monitoring can save you from coming back to frozen pipes or a complete system failure.
Craig Whitham
Electrical Director, Agua Therm
Professional Repair Process
Our certified engineers completed the emergency repair with meticulous attention to detail:
- Emergency call-out and full diagnostic of Sime boiler system
- Isolated and drained the heating circuit safely
- Removed both seized Grundfos circulation pumps
- Installed two new Grundfos UPS energy-efficient circulation pumps
- Replaced faulty thermostat with modern programmable unit
- Full system flush to remove debris and scale from the failed pumps
- Pressure tested entire heating circuit to check for leaks
- Checked Cordivari hot water cylinder connections and safety valve
- Recommissioned boiler and verified all error codes cleared
Repair Results
Same Day
Repair Time
2x Grundfos
Pumps Replaced
Smart Upgrade
Thermostat
Fully Operational
System Status
Why Regular Boiler Servicing Matters
This emergency repair could have been prevented with regular annual servicing. Here's why boiler maintenance is essential for villa owners:
- Annual servicing identifies worn pumps, valves, and seals before they fail completely
- Running the system during summer prevents pump seizure from inactivity
- Thermostat calibration checks ensure accurate temperature readings year-round
- System flushing removes sludge and debris that reduce efficiency and cause blockages
- Safety valve and pressure testing ensures compliance with insurance requirements
